Re:actor

Description

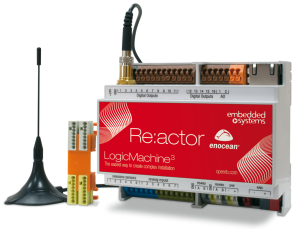

Re:actor is all-in-one cross-standard controller uniting in one device:

• 31 I/O ports (see details below)
• scenario and logic engine
• visualization for PC and for touch devices
• gateway and uniform way of controll of Modbus, BACnet, DMX, GSM networks and protocols
• Re:actor has built-in EnOcean bi-directional interface
• Size: 6 DIN units
• remote bus control and reprogramming
• object logging with trends support and data exporting to external servers
• Re:actor provides easy integration, smart automatic discovery and self-learning of other similar devices
• Other features includes all other functionality from Logic Machine 3

Re:actor is a simple solution for complex tasks providing possibility to complete the installation with only one single device. Yet Re:actor offers an unbeatable price ratio for complete installation.

LogicMachine core functionality presentation



I/O specification

• 16 x digital (or PWM) outputs for controlling external relays
• 6 x resistive sensor input (PT1000 or other) or binary inputs
• 7 x 0-30V or binary inputs
• 2 x 0-10V outputs
• 2 x RS485
• 1 x USB2.0
• 1 x 10/100 Ethernet
• 1 x 868MHz radio transceiver (Enocean compatible)
• 1 x KNX TP1 (TP-UART2 physical layer IC)

Extensibility

The following device are in development process to interconnect with Re:actor:

• RS485 I/O extension module with additional 32 I/Os
• RS485 8 inputs (binary, 0-30V)
• RS485 DALI, 64 objects
• RS485 0-10V dimmer, 8 folds
• EnOcean/BACnet 8 folds digital output

Demo

You are welcome to try demo of Logic Machine here:

• Logic Machine demo
• login: admin
• password: admin

LogicMachine visualization demo available here.



Download LogicMachine3 Re:actor Datasheet here



Download LogicMachine3 Re:actor Operating instructions here



Download LogicMachine3 Re:actor Brochure here



Download LogicMachine3 Re:actor manual here
